Developer Guide

• Acknowledgements
• Setting up, getting started
• Design
  • Architecture
  • UI component
  • Logic component
  • Model component
  • Storage component
  • Common classes
• Implementation
  • [Proposed] Undo/redo feature
    • Proposed Implementation
    • Design considerations:
  • [Proposed] Data archiving
• Documentation, logging, testing, configuration, dev-ops
• Appendix: Requirements
  • Product scope
  • User stories
  • Use cases
  • Non-Functional Requirements
  • Glossary
• Appendix: Instructions for manual testing
  • Launch and shutdown
  • Deleting a person
  • Saving data

---

Acknowledgements

• {list here sources of all reused/adapted ideas, code, documentation, and third-party libraries – include links to the original source as well}

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Design

Architecture

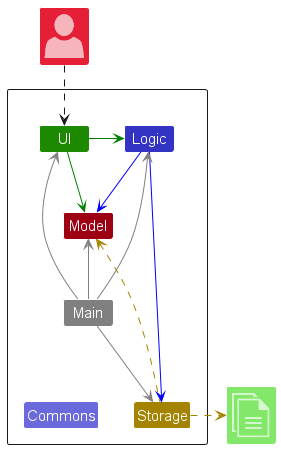

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

• At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
• At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app’s work is done by the following four components:

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

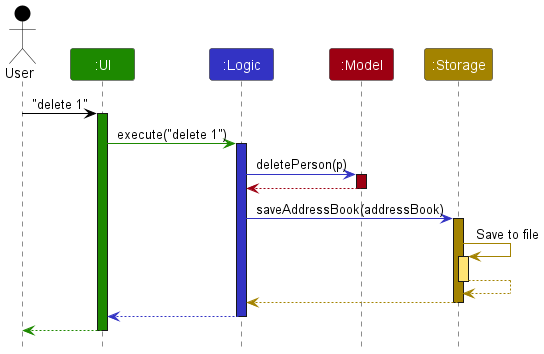

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

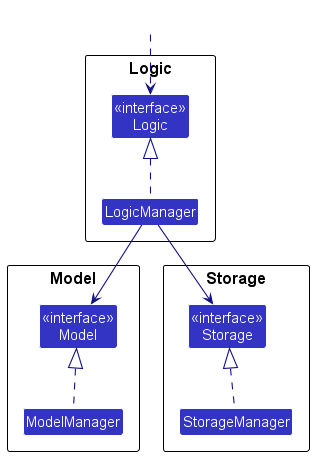

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

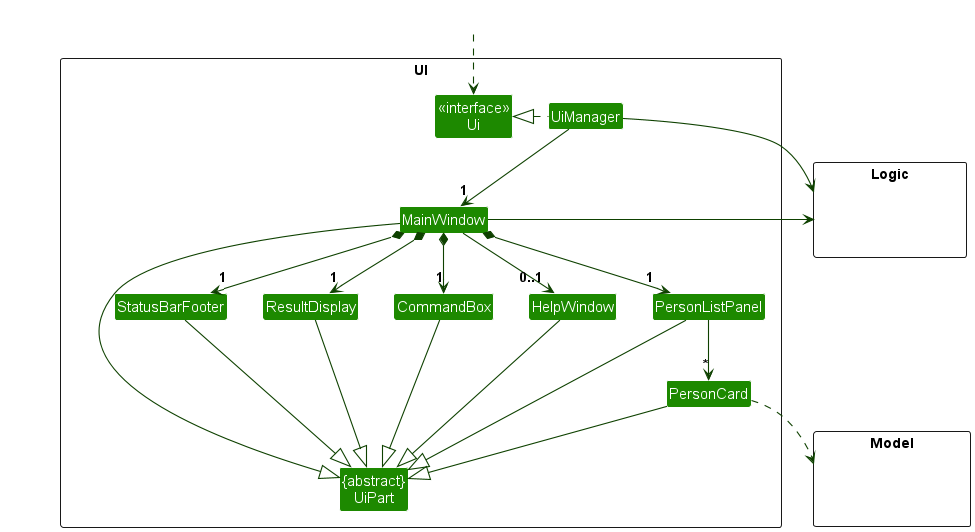

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PersonListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Person object residing in the Model.

Logic component

API : Logic.java

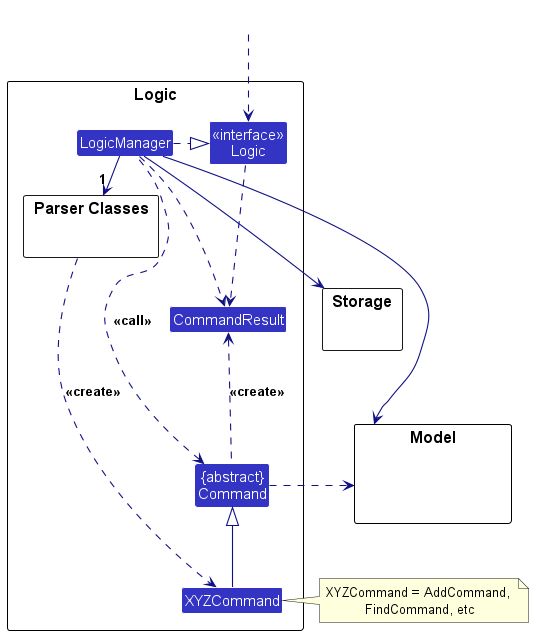

Here’s a (partial) class diagram of the Logic component:

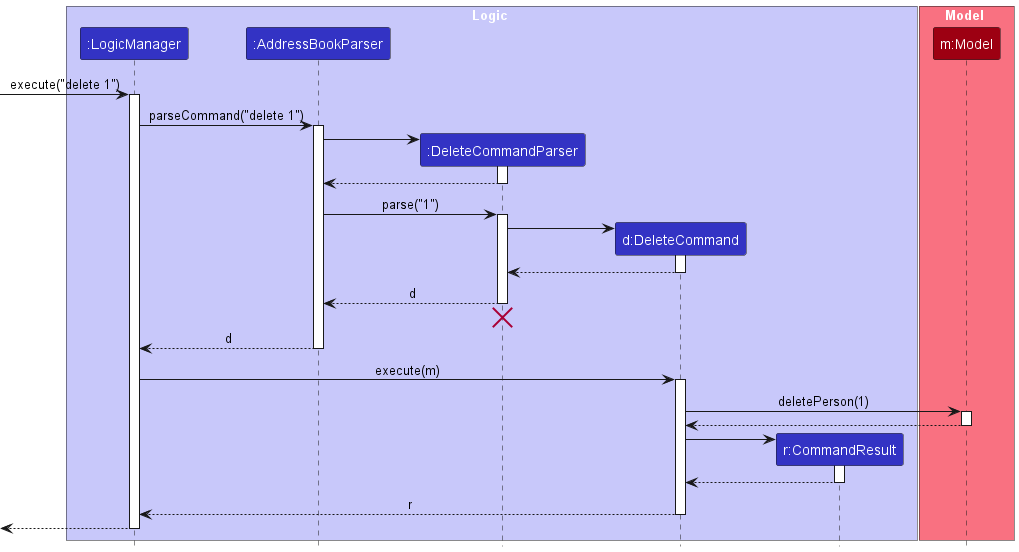

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete 1") API call as an example.

How the Logic component works:

1. When Logic is called upon to execute a command, it is passed to an AddressBookParser object which in turn creates a parser that matches the command (e.g., DeleteCommandParser) and uses it to parse the command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to delete a student).
   Note that although this is shown as a single step in the diagram above (for simplicity), in the code it can take several interactions (between the command object and the Model) to achieve.
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

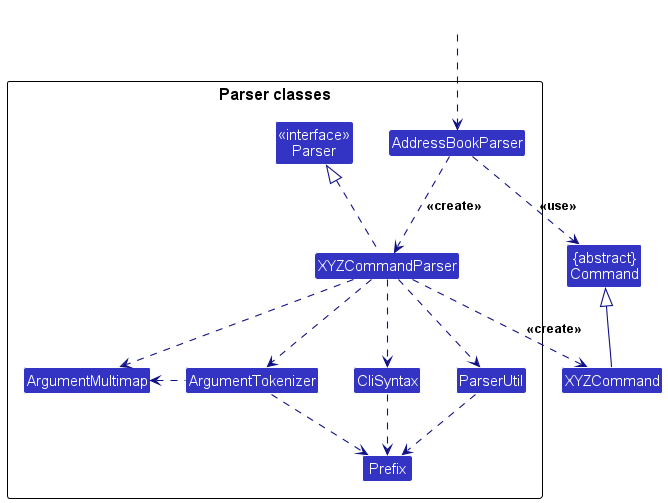

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the AddressBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the AddressBookParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

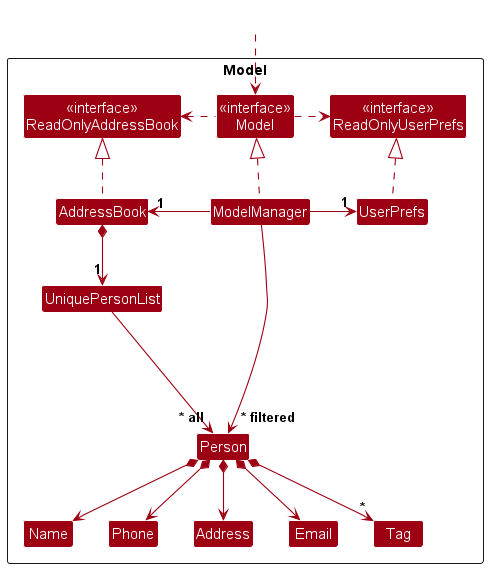

Model component

API : Model.java

The Model component,

• stores the address book data i.e., all Person objects (which are contained in a UniquePersonList object).
• stores the currently ‘selected’ Person objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.

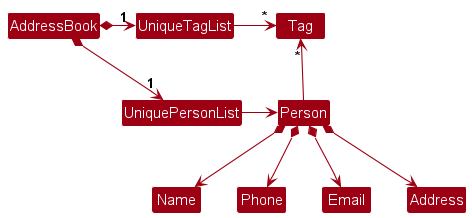

• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

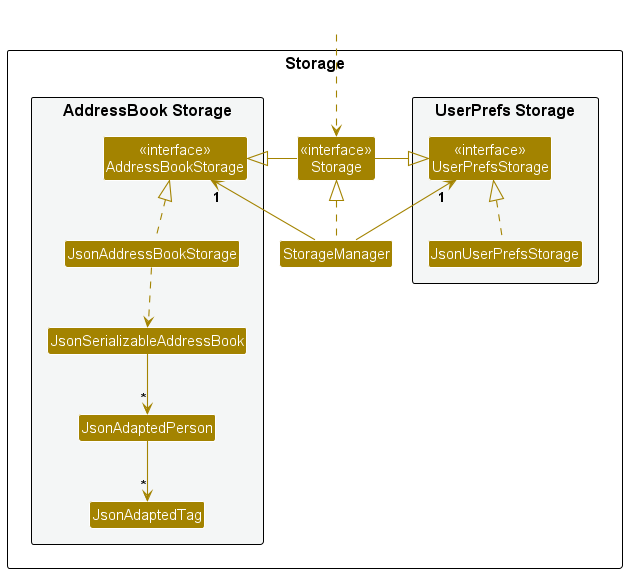

Storage component

API : Storage.java

The Storage component,

• can save both address book data and user preference data in JSON format, and read them back into corresponding objects.
• inherits from both AddressBookStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.address.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

[Proposed] Undo/redo feature

Proposed Implementation

The proposed undo/redo mechanism is facilitated by VersionedAddressBook. It extends AddressBook with an undo/redo history, stored internally as an addressBookStateList and currentStatePointer. Additionally, it implements the following operations:

• VersionedAddressBook#commit() — Saves the current address book state in its history.
• VersionedAddressBook#undo() — Restores the previous address book state from its history.
• VersionedAddressBook#redo() — Restores a previously undone address book state from its history.

These operations are exposed in the Model interface as Model#commitAddressBook(), Model#undoAddressBook() and Model#redoAddressBook() respectively.

Given below is an example usage scenario and how the undo/redo mechanism behaves at each step.

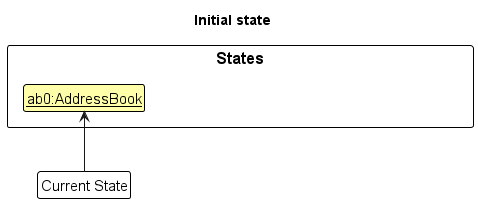

Step 1. The user launches the application for the first time. The VersionedAddressBook will be initialized with the initial address book state, and the currentStatePointer pointing to that single address book state.

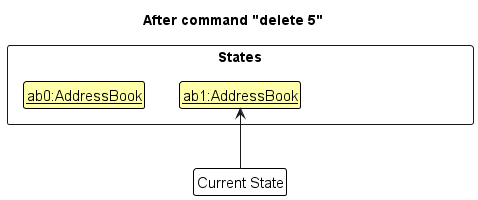

Step 2. The user executes delete 5 command to delete the 5th student in the address book. The delete command calls Model#commitAddressBook(), causing the modified state of the address book after the delete 5 command executes to be saved in the addressBookStateList, and the currentStatePointer is shifted to the newly inserted address book state.

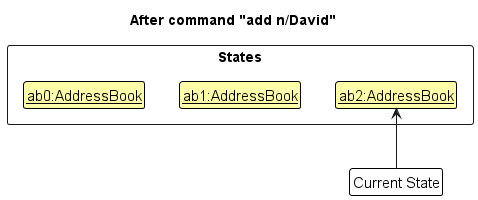

Step 3. The user executes add n/David …​ to add a new student. The add command also calls Model#commitAddressBook(), causing another modified address book state to be saved into the addressBookStateList.

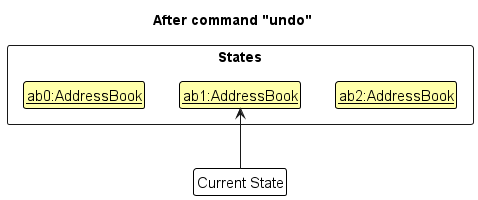

Step 4. The user now decides that adding the student was a mistake, and decides to undo that action by executing the undo command. The undo command will call Model#undoAddressBook(), which will shift the currentStatePointer once to the left, pointing it to the previous address book state, and restores the address book to that state.

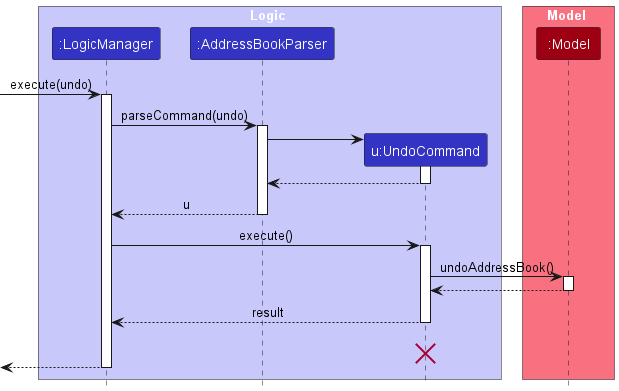

The following sequence diagram shows how an undo operation goes through the Logic component:

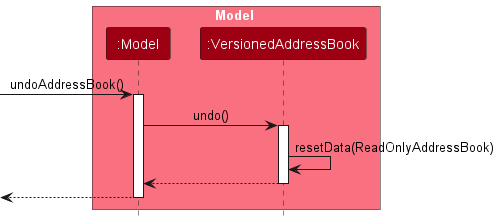

Similarly, how an undo operation goes through the Model component is shown below:

The redo command does the opposite — it calls Model#redoAddressBook(), which shifts the currentStatePointer once to the right, pointing to the previously undone state, and restores the address book to that state.

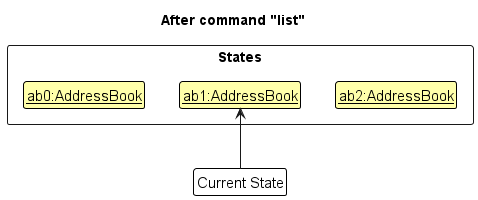

Step 5. The user then decides to execute the command list. Commands that do not modify the address book, such as list, will usually not call Model#commitAddressBook(), Model#undoAddressBook() or Model#redoAddressBook(). Thus, the addressBookStateList remains unchanged.

Step 6. The user executes clear, which calls Model#commitAddressBook(). Since the currentStatePointer is not pointing at the end of the addressBookStateList, all address book states after the currentStatePointer will be purged. Reason: It no longer makes sense to redo the add n/David …​ command. This is the behavior that most modern desktop applications follow.

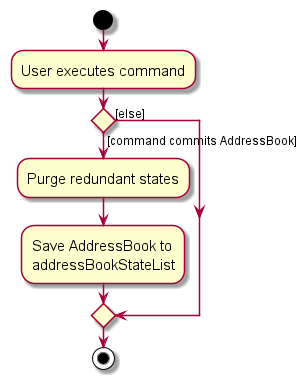

The following activity diagram summarizes what happens when a user executes a new command:

Design considerations:

Aspect: How undo & redo executes:

• Alternative 1 (current choice): Saves the entire address book.
  • Pros: Easy to implement.
  • Cons: May have performance issues in terms of memory usage.
• Alternative 2: Individual command knows how to undo/redo by itself.
  • Pros: Will use less memory (e.g. for delete, just save the student being deleted).
  • Cons: We must ensure that the implementation of each individual command are correct.

{more aspects and alternatives to be added}

[Proposed] Data archiving

{Explain here how the data archiving feature will be implemented}

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Requirements

Product scope

Target user profile: Computer Science (CS) Teaching Assistants (TA) who are managing a small tutorial group, with many student related components to keep track of.

• has a need to manage a small number of students
• prefer desktop apps over other types
• can type fast
• prefers typing to mouse interactions
• is reasonably comfortable using CLI apps

Value proposition: Help TAs efficiently manage student contacts, track participation, and monitor submissions, providing a simple text based interface optimised for users to prefer Command Line Interface (CLI).

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority	As a …​	I want to …​	So that I can…​
* * *	TA who is using this app for the first time	see an overview of all the functionalities of TAHub
* * *	TA	add students to TAHub	start organising them before tutorial starts
* * *	TA	keep track of each student’s school email
* * *	TA	keep track of each student’s telegram handle
* * *	TA	keep track of each student’s year and major
* * *	TA	remove students who are not part of my class	see only existing students in my record
* * *	TA	record attendance during tutorials	fairly track each student’s attendance
* * *	TA	record participation during tutorials	fairly track each student’s contributions
* * *	TA	use short and intuitive commands	update records quickly during a busy tutorial session
* * *	TA	record whether each student submitted their weekly task	monitor consistency and identify students who are falling behind
* * *	TA	view attendance/participation records of each student	monitor the participation level of each student over the semester
* * *	TA	view the attendance/participation records of all the students in TAHub	identify students who are lagging behind tutorials
* * *	TA	mark students who are not present with valid reasons as excused	track student attendance more easily
* *	TA	view trends	identify students who need extra support
* *	TA	redo/undo recent actions	correct mistakes easily
* *	TA	sort the students displayed by attendance/participation record	see who are the students who need the most assistance
* *	TA	search for students by partial name or email	quickly find the right person
*	TA	export data	provide evidence of student participation for grading
*	TA	lock the participation records from further edits	accidental edits will not happen after it has been finalised
*	TA	filter students who have low attendance/participation records	easily find the students who need extra guidance
*	TA	view my students in alphabetical order	browse the list more easily

Use cases

(For all use cases below, the System is the TAHub and the Actor is the Teaching Assistant(TA), unless specified otherwise)

Use case: UC01 Add a student

Guarantees: A student’s entry is added to the class.

MSS

1. TA requests to add a student to the class.
2. TAHub adds the student’s entry and displays a success message.
   Use case ends.

Extensions

• 1a. TAHub detects an error in the entered command.
  • 1a1. TAHub displays an error message.
    Use case ends.
• 1b. TAHub detects a duplicate entry.
  • 1b1. TAHub notifies TA of duplicate entry.
    Use case ends.

Use case: UC02 Delete a student

Preconditions: The student to be deleted has an existing entry in TAHub.

Guarantees: The student is deleted.

MSS

1. TA lists entries (UC03).
2. TA requests to delete a student’s entry.
3. TAHub removes the student’s entry and displays a success message.
   Use case ends.

Extensions

• 2a. TAHub detects an error in the entered command.
  • 2a1. TAHub displays an error message.
    Use case ends.

Use case: UC03 List entries

Guarantees: All student entries will be displayed.

MSS

1. TA requests to list entries.
2. TAHub displays the list of students.
   Use case ends.

Extensions

• 1a. TAHub detects an error in the entered command.
  • 1a1. TAHub displays an error message.
    Use case ends.
• 1b. There are no existing students entries in TAHub.
  • 1b1. TAHub notifies the user that there are no existing entries.
    Use case ends.

Use case: UC04 Find student

Guarantees: All student entries with matching names will be displayed.

MSS

1. TA requests to find students by name.
2. TAHub displays matching student entries.
   Use case ends.

Extensions

• 1a. TAHub detects an error in the entered command.
  • 1a1. TAHub displays an error message.
    Use case ends.
• 1b. There are no students that match the given name.
  • 1b1. TAHub notifies the user that no match is found.
    Use case ends.

Use case: UC05 Clear Entries

Guarantees: All student entries will be deleted.

MSS

1. TA requests to clear entries.
2. TAHub deletes all entries and displays a success message.
   Use case ends.

Extensions

• 1a. TAHub detects an error in the entered command.
  • 1a1. TAHub displays an error message.
    Use case ends.

• 1b. There are no existing entries in TAHub.

  • 1b1. TAHub notifies the user that there are no existing entries.
    Use case ends.

Use case: UC06 Edit Student

Preconditions: The student to be edited has an existing entry in TAHub.

Guarantees: The student’s entry is edited.

MSS

1. TA lists entries (UC03).
2. TA requests to edit a student’s entry.
3. TAHub edits the student’s entry and displays a success message.
   Use case ends.

Extensions

• 2a. TAHub detects an error in the entered command.
  • 2a1. TAHub displays an error message.
    Use case ends.
• 2b. TAHub detects a duplicate student entry.
  • 2b1. TAHub notifies TA of duplicate entry.
    Use case ends.

Use case: UC07 Show Commands

Guarantees: TAHub displays command guide.

MSS

1. TA requests to view command guide.
2. TAHub displays command guide.
   Use case ends.

Extensions

• 1a. TAHub detects an error in the entered command.
  • 1a1. TAHub displays an error message.
    Use case ends.

Use case: UC08 Exit TAHub

Preconditions: TAHub is currently running.

Guarantees: TAHub closes.

MSS

1. TA requests to exit TAHub.
2. TAHub displays an exit message and closes.
   Use case ends.

Extensions

• 1a. TAHub detects an error in the entered command.
  • 1a1. TAHub displays an error message.
    Use case ends.

Use case: UC09 Add student record

Preconditions: The TA has already added the student to the class.

Guarantees: The record is updated for the correct student in the class.

MSS

1. TA list entries UC03.
2. TA requests to add a student record.
3. TAHub adds the record.
4. TAHub displays a success message.
   Use case ends.

Extensions

• 2a. TAHub detects an error in the entered command.
  • 2a1. TAHub displays an error message.
    Use case ends.
• 2b. Student record already exists.
  • 2b1. TAHub overwrites the existing record.
    Use case resumes from step 4.

Use case: UC10 Generate individual student record report

Preconditions: The TA has already added the student into the class.

Guarantees: A graphical summary of student records is generated.

MSS

1. TA list entries UC03.
2. TA requests to generate an individual student record report.
3. TAHub displays the individual student record.
   Use case ends.

Extensions

• 2a. TAHub detects an error in the entered command.
  • 2a1. TAHub displays an error message.
    Use case ends.
• 2b. The student has no existing records.
  • 2b1. TAHub displays an empty report with a note.
    Use case ends.

Use case: UC11 Generate class record report

Preconditions: The TA has students with existing records in the class.

Guarantees: A graphical summary of student records is generated.

MSS

1. TA requests to generate a class record report.
2. TAHub displays the class record report.
   Use case ends.

Extensions

• 1a. TAHub detects an error in the entered command.
  • 1a1. TAHub displays an error message.
    Use case ends.
• 1b. The class has no existing records.
  • 1b1. TAHub displays an empty report with a note.
    Use case ends.

Non-Functional Requirements

1. Should work on any mainstream OS as long as it has Java 17 or above installed.
2. Should be able to hold up to 1000 persons without a noticeable sluggishness in performance for typical usage.
3. A user with above-average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
4. Should be usable by a novice who has never used admin tracking platforms.
5. The product does not cover communicating with contacts and submission/grading of assignments.
6. The product should not lose any data when the application crashes or exits unexpectedly.

Glossary

• Mainstream OS: Windows, Linux, Unix, MacOS
• Command Line Interface (CLI): A CLI is a text-based user interface that allows users to interact with the application.
• Teaching Assistant (TA): A TA is an educational professional who supports a certified teacher in the classroom by helping to deliver lessons, provide individualized student support, and manage classroom tasks.
• Entry: A student entity stored in TAHub. Each entry contains details related to the student, such as name, email, telegram handle, year of study, and major.
• Record: A quantifiable piece of information linked to a student within a class. Examples include participation score, attendance, and task submission history.
• Class: A class refers to all student entries and their associated records in TAHub.

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   1. Download the jar file and copy into an empty folder

   2. Double-click the jar file Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

2. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.

   2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

3. { more test cases …​ }

Deleting a person

1. Deleting a person while all persons are being shown

   1. Prerequisites: List all persons using the list command. Multiple persons in the list.

   2. Test case: delete 1
      Expected: First contact is deleted from the list. Details of the deleted contact shown in the status message. Timestamp in the status bar is updated.

   3. Test case: delete 0
      Expected: No person is deleted. Error details shown in the status message. Status bar remains the same.

   4. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

2. { more test cases …​ }

Saving data

1. Dealing with missing/corrupted data files

   1. {explain how to simulate a missing/corrupted file, and the expected behavior}

2. { more test cases …​ }
